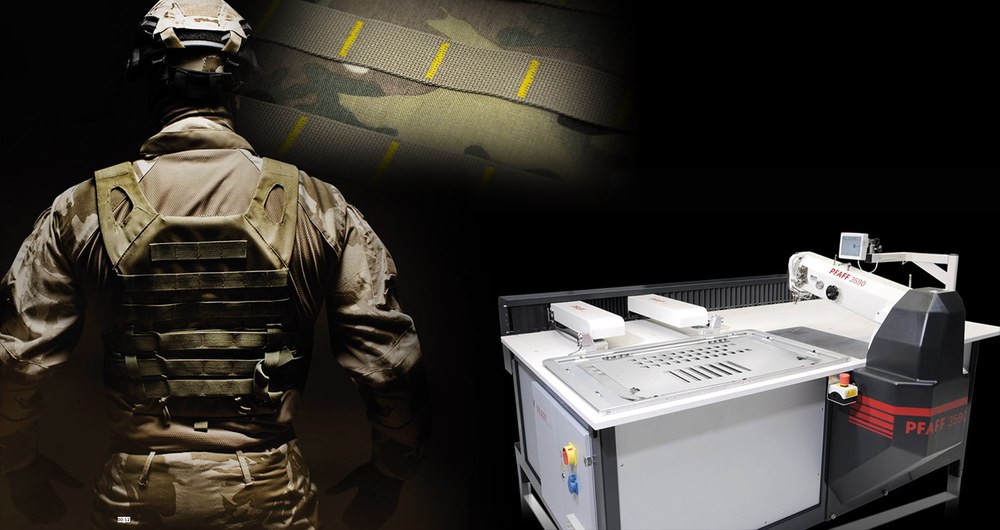

PFAFF 3590 Vario -6/... with Zigzag Stitch

Up to 60% faster bartacking compared to standard CNC-large area stitcher

MAXIMUM PERFORMANCE:

• Sewing area 850 x 400 mm
• Sewing speed: max. 2,000 stichtes/min.
• 60 – 80 bartacks per template

MAXIMUM MATERIAL PRESERVATION:

• Zigzag stitches are made via movement of the needle bar, not via movement of the template. UNIQUE!

MAXIMUM FLEXIBILITY:

• The sewing head can make zigzag AND straight stitches

MAXIMUM RELIABILITY:

• Highest service life; proven in the automotive industry.

FASTEST AMORTISATION:

• Up to 60% faster bartacking compared to standard CNC-large area stitcher

Further Features:

• Touch-control-panel P1 with integrated SD card reader / USB. The P1 guarantees an intuitive operation
• Special automatic sewing head suitable for threads from 80/3 to 11/3 with raisable arm (90 mm clearance)
• Vibrating presser with programmable height control (two positions) - floating presser foot on request
• Excellent multi-directional sewing properties due to vertical hook system
• Accurate seam quality due to the intermittent feed (feed stop when needle enters material), shifting of the material in the work clamp is avoided and wear on the hook is reduced
• Touch-control-panel P1 with integrated SD card reader. The P1 guarantees an intuitive operation
• The machine creates the bartacks through the movement of the needle bar and not through the motion of the entire frame. This significantly increases the performance and is gentler on both the machine and the material
• Versions/Sewing areas

  • 3590-6/5030 500 x 300 mm
  • 3590-6/5040 500 x 400 mm
  • 3590-6/8540 850 x 400 mm
  • 3590-6/8550 850 x 500 mm



Options:

• Work clamp identification and matching seam program via RFID (Radio Frequency Identification) functionality. The RFID regognization realizes an automatic start (less idle time and a higher output)
• Sewing templates upon customers request
• Programming system PSP (PFAFF Stitch Program)
• Floating pressure foot for the sewing jigs (height adjustable)
• Software controlled needle bar turning device and a mechanical bobbin thread slide (to counter loop stitches when sewing highly decorative and multidirectional seam designs)
• 1 set of rollers for transportation (4 pieces)
• Foot switch
• Bobbin thread monitoring via sensor
• High-adjustable machine stand (electronic)

Applications:

Tactical vests or outdoor goods with a number of bartacks to be sewn

Specifications

Needle system: 134-35 KK
Needle size: 80 - 160 Nm
Max. sewing speeds: 3.000 s.p.m
Max. stitch length: 0,1 - 10,0 mm
Stitch type: 304 (Zigzag stitch) and 301 (Lockstitch)
Connection voltage: single-phase a.c. 230 V, 50/60 Hz
