PFAFF 8333

Premium hot-air taping machine for welding continuous seams on water-resistant, waterproof and breathable materials with new technical features (also for sophisticated, industrial applications)

NEW: Maximum process control

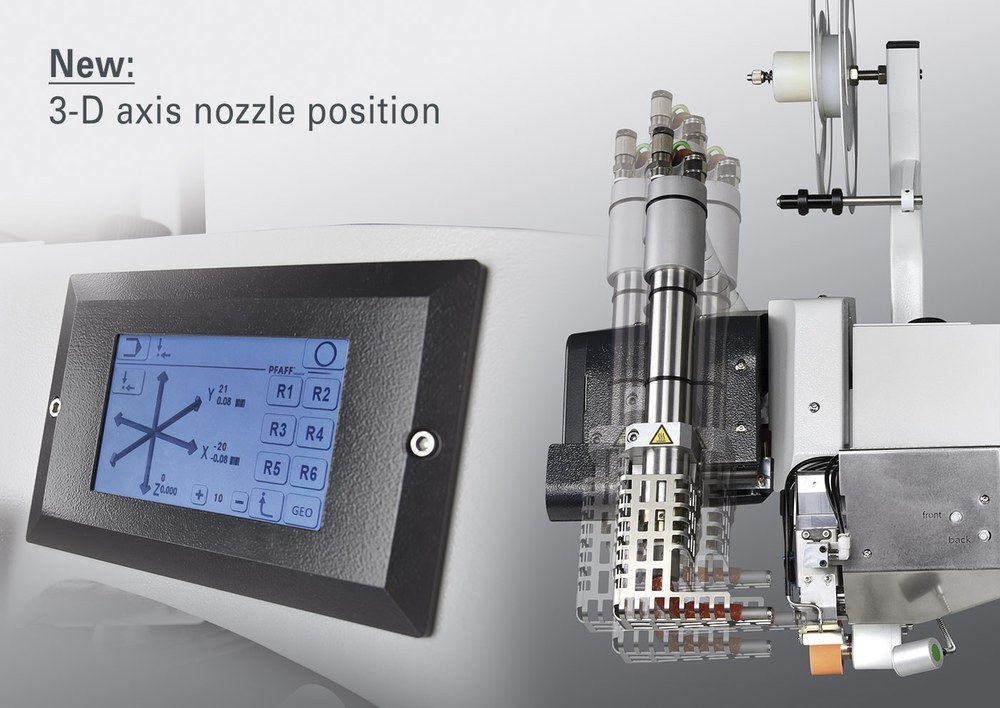

• All relevant process parameters (such as air flow, pressure, temperature and speed) can be programmed and saved via touchscreen. The new 3-D axis nozzle position of the new PFAFF 8333 provides the last missing link for unique process control

NEW: Tape cutter for widths from 8 - 30 mm

• Trimming of the seam tape becomes unnecessary (welding from the beginning of the tape), resulting in a considerable reduction of the tape used. The tape cutter is electronically controlled, with precision adjustment for an exact setting

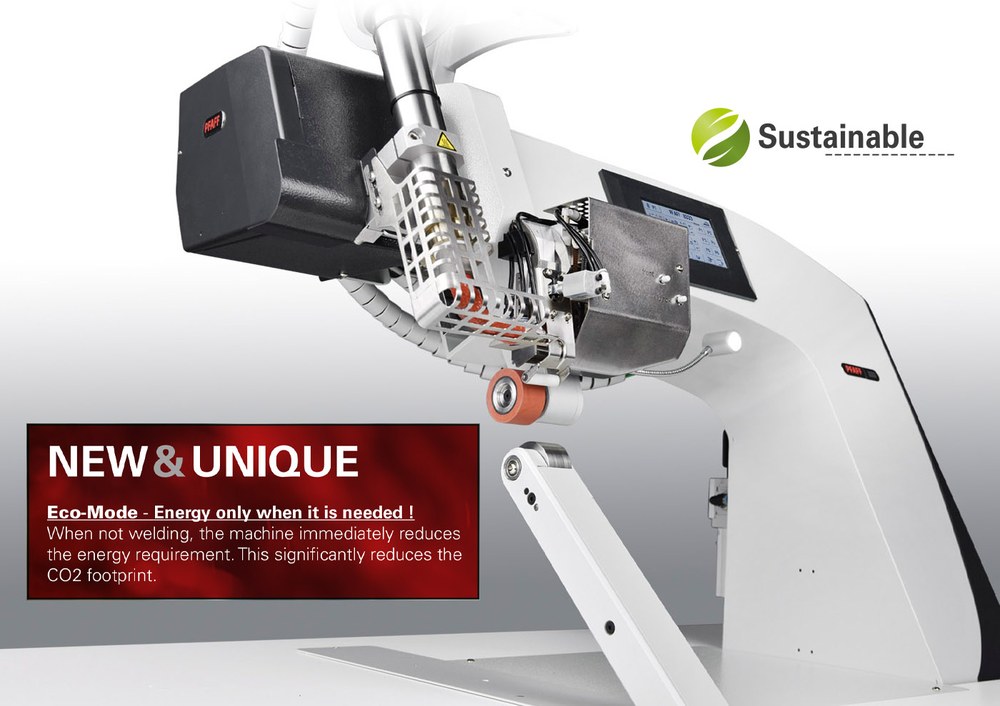

NEW: Maximum Output - Less material, energy and air consumption

• 20% increased productivity in comparison to other tape welding machines. Up to 15% reduction of the amount of tape used compared to standard machines. Less energy and air consumption thanks to new, optimised nozzle

Reproducible quality / High process reliability

• All relevant process parameters can be programmed and saved via touchscreen

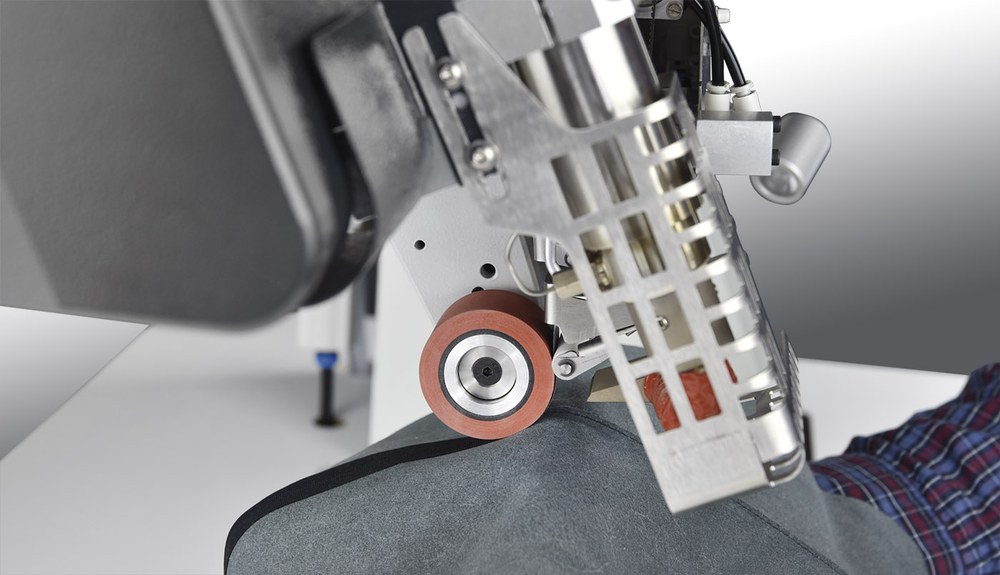

Differential feed for highest seam quality

• Two separate drive motors for the top and bottom feed roller guarantee an optimum adaptation to the operation (e.g. smooth seams or fullness for formed parts)

Variable post- and roller concept

• Customer application in focus! Variable post concept (post width 25, 28 and 32 mm and post positions like post from front, vertical post and post from back – depending on the operation). Several roller diameters are available: 45 mm for standard operations, 25 mm for shoes and automotive (narrow curves) applications

NEW: Small post, 25 mm diameter

Small post with central belt drive for applications with very small radii

Applications

Seam sealing by tape welding in the areas of workwear, protective clothing, outdoor and sportswear, as well as filtration, shoes & automotive

Specifications

Sealing temperature: max. 650 °C
Sealing speed: max. 7 m/min (standard), option up to 20 m/min available
Width of nozzles: 10 - 30 mm (others available)
Air consumption (6 Bar): approx. 150 l/min
Connection voltage: single-phase a.c. 230 V, 50/60 Hz
